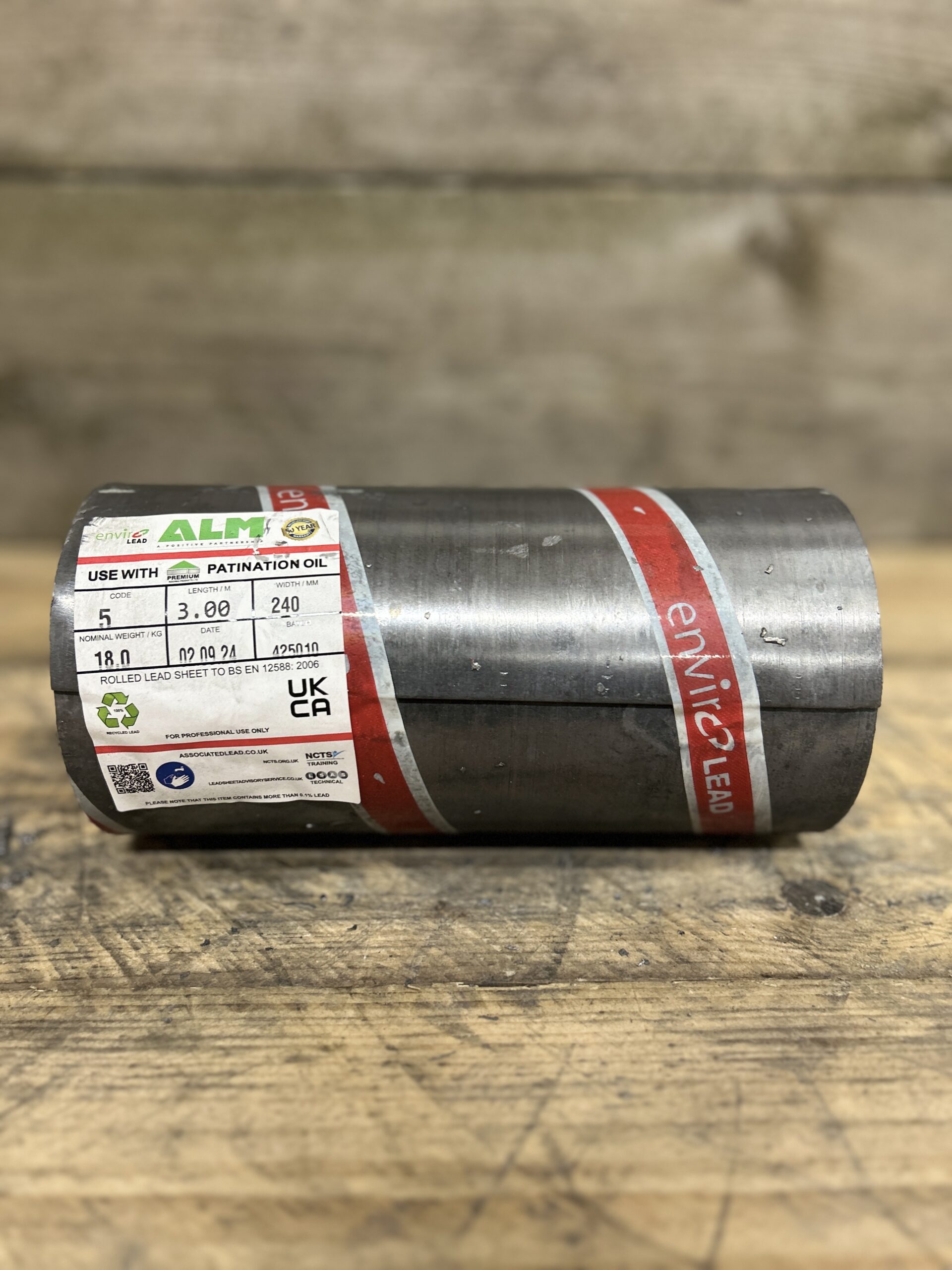

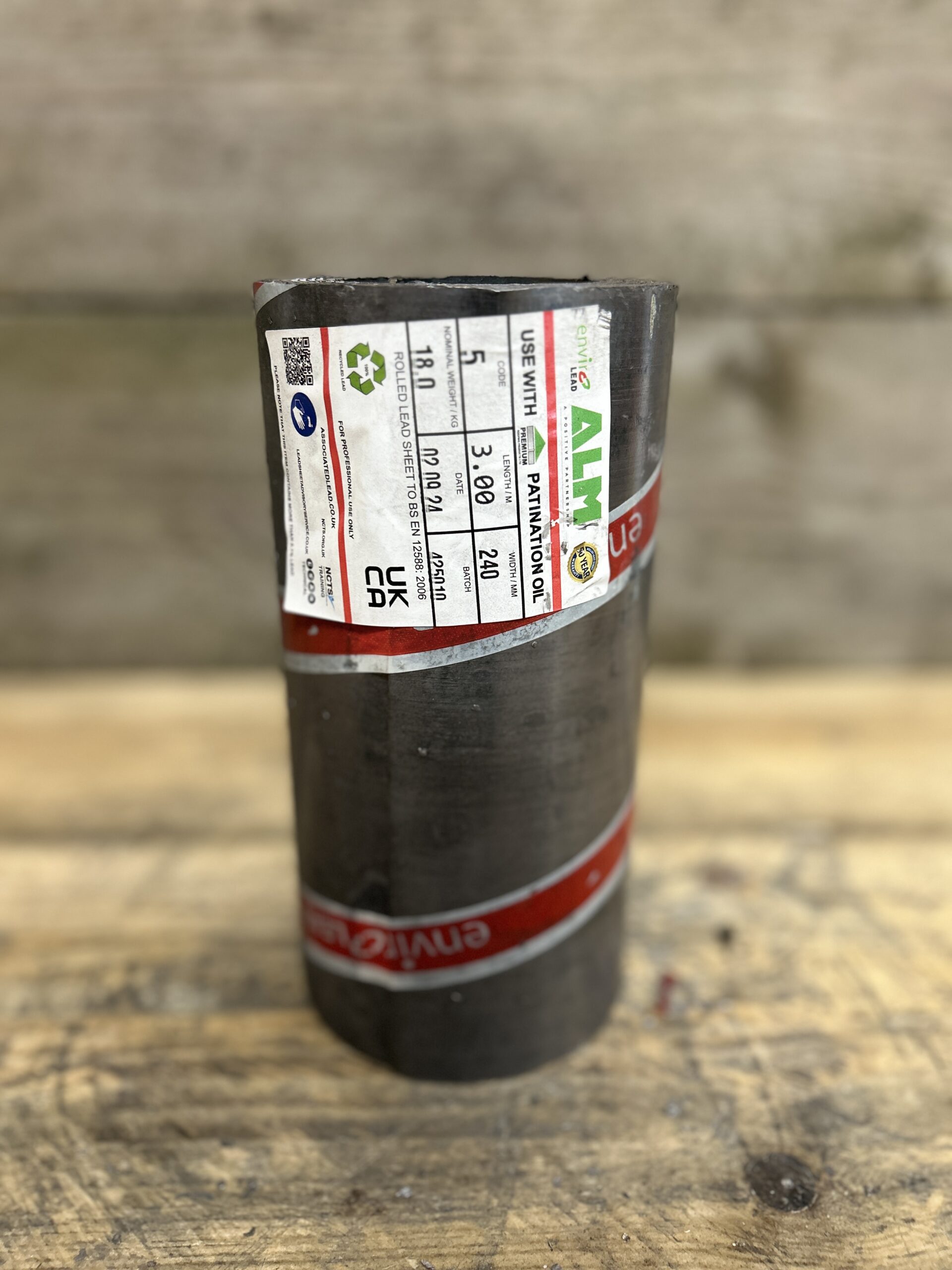

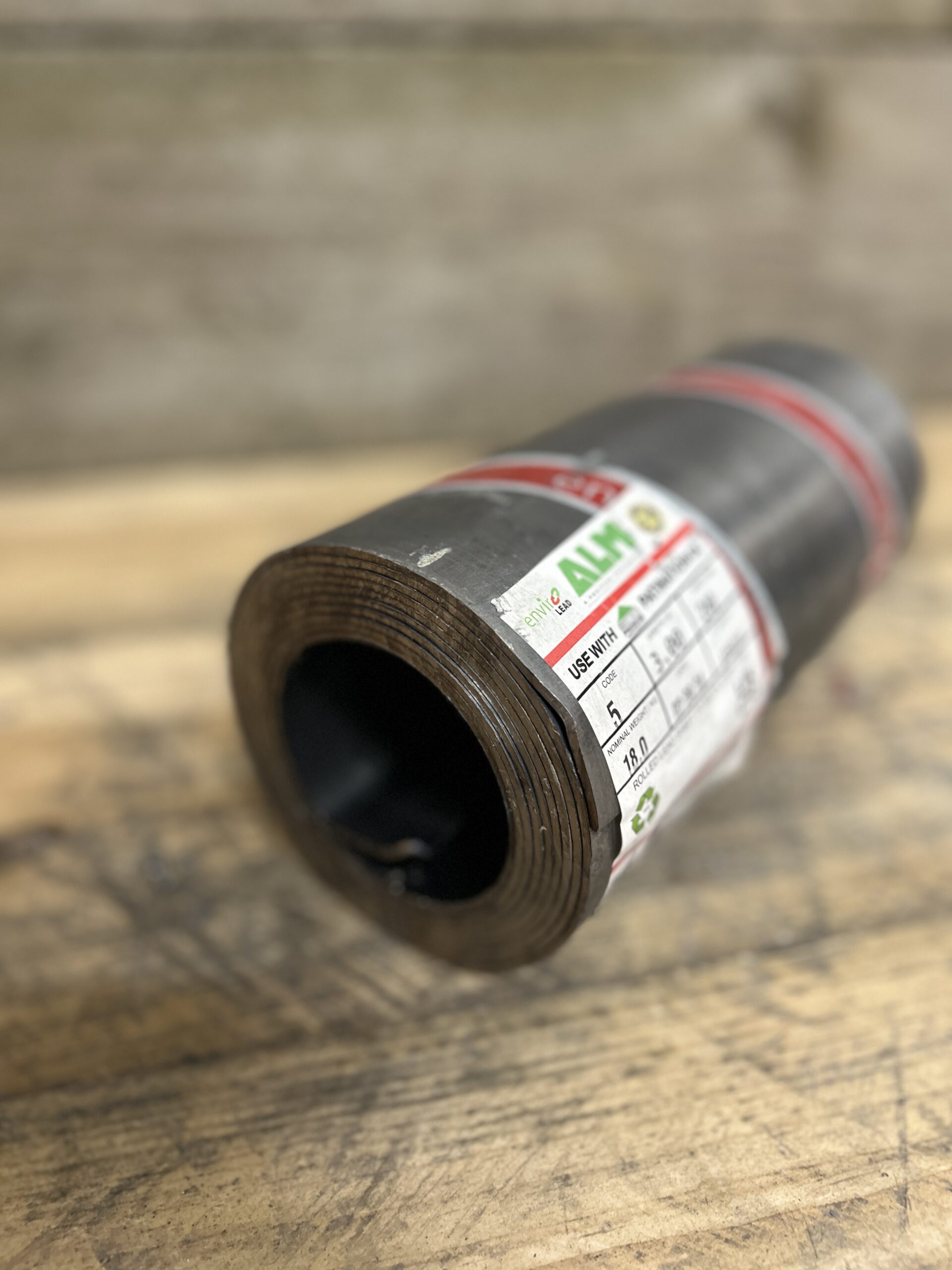

Why choose code 5 240mm 3m roofing lead?

The code 5 240mm 3m roofing lead roll is a strong, versatile and heavy-gauge sheet ideal for exposed detailing, robust flashings, wide soakers and heritage reinstatement work. At 240mm wide, it provides more coverage than narrower strips while still remaining very manageable for installers working on chimneys, abutments and movement-heavy junctions that require long-term reliability.

Manufactured to BS EN 12588, this product offers predictable malleability, reliable shaping performance and enhanced corrosion resistance from its approximate 2.24mm thickness. Installers choose code 5 240mm 3m roofing lead for challenging details where lighter gauges may fatigue over time, particularly on chimneys exposed to high winds, high-movement abutments or premium architectural projects.

Its 3m roll length keeps the sheet lightweight enough to handle safely while significantly reducing the number of required joints—improving waterproofing and speeding up installation. This makes it an excellent all-round size for roofing professionals who need durability, coverage and workability in one roll.

For precise quantities and planning, use our
Lead Flashing Calculator.

Typical uses for code 5 240mm 3m roofing lead

Thanks to its width and enhanced strength, this roll is commonly used for:

• Chimney flashings on brick or stone abutments.
• Medium-width soakers for slate or tile roofing.
• Cover flashings on exposed or high-movement elevations.
• Dormer cheek detailing and small parapet weatherings.
• Lead protection on conservation or listed building work.
• Replacement of worn flashings where Code 3 or 4 previously failed.

Why choose Code 5 for wider roofing details?

When the detail requires better stability, strength and resistance to fatigue, code 5 240mm 3m roofing lead provides a dependable upgrade. The increased thickness reduces the risk of cracking in high-stress areas, improves lifespan and maximises resilience in locations where thermal expansion is frequent.

• Superior performance in exposed or wind-prone areas.
• Significantly reduced fatigue risk compared with Code 3 or 4.
• Ideal for chimneys and abutments with thermal expansion cycles.
• Extended lifespan on heritage and premium installations.

Installation guidance

All Code 5 lead must be installed following BS EN 12588 workmanship principles and LSTA/LSA guidance. Correct setting-out, chase preparation, fixing spacing and movement allowance are essential for long-term performance.

After fitting, always treat code 5 240mm 3m roofing lead with patination oil to ensure even weathering and prevent early carbonate staining.

For clean, durable chase sealing, use mortar or
Lead Mate Sealant.

Installation essentials

1. Prepare the chase: Ensure clean, consistent chase depth.
2. Dress the sheet: Form without overstretching the gauge.
3. Use correct fixings:
   Choose copper or stainless nails/clips from our
   Fixings Range.
4. Seal neatly: Joint with mortar or Lead Mate.
5. Apply patination oil: Protect all exposed surfaces.

Further guidance & reference material

For deeper technical support, explore
The Lead Handbook,
our broader leadwork platform at
The Lead Lads,
or professional lead services at
Neal Roofing.

Recommended accessories

Combine code 5 240mm 3m roofing lead with:
Hall Clips,
Patination Oil,
Lead Mate Sealant,
and premium fixings from our
Leadwork Fixings.

At a glance — code 5 240mm 3m roofing lead

All values approximate. Install to BS EN 12588 and LSTA/LSA guidance.
