Why choose code 3 450mm 6m roofing lead?

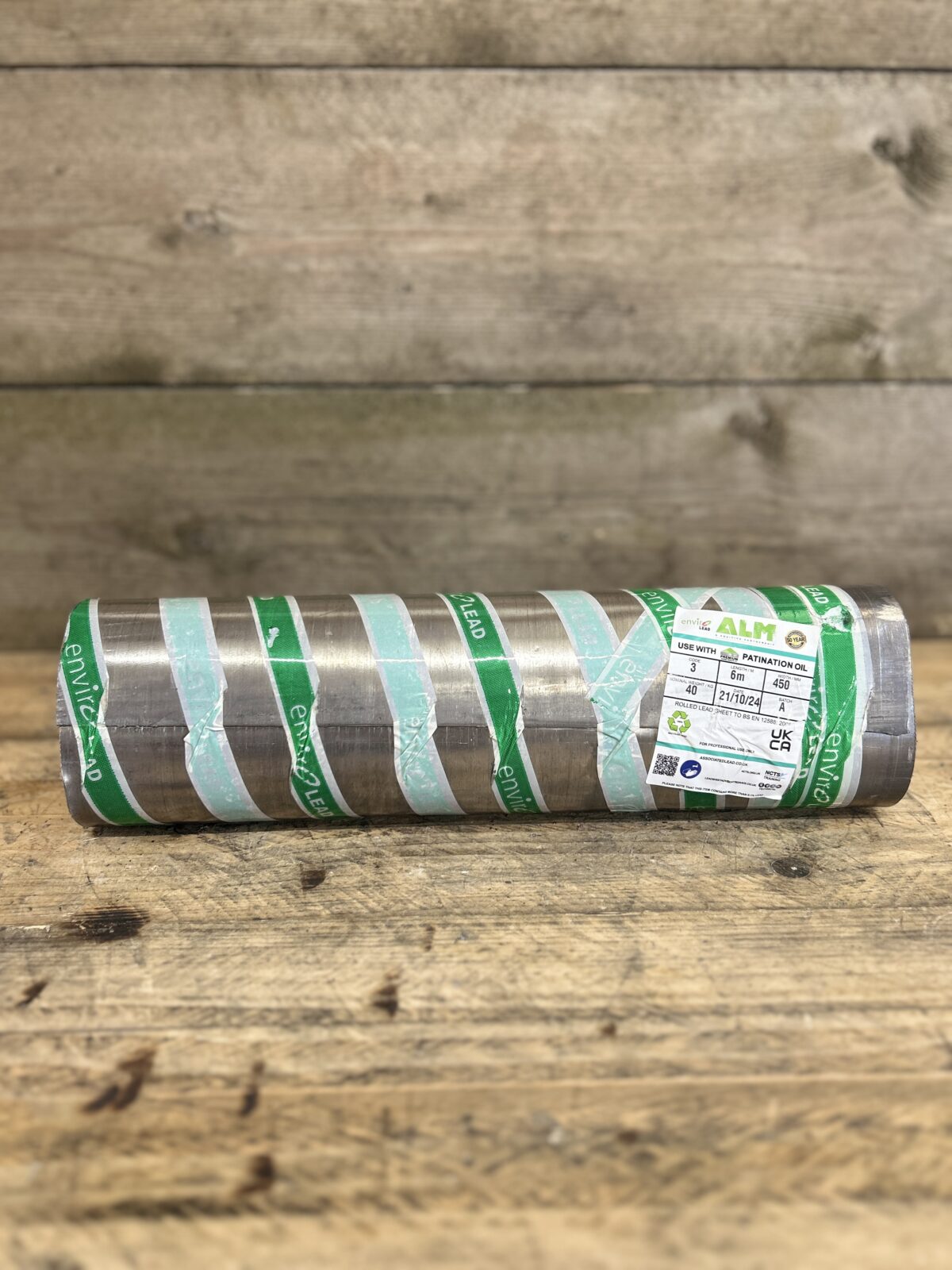

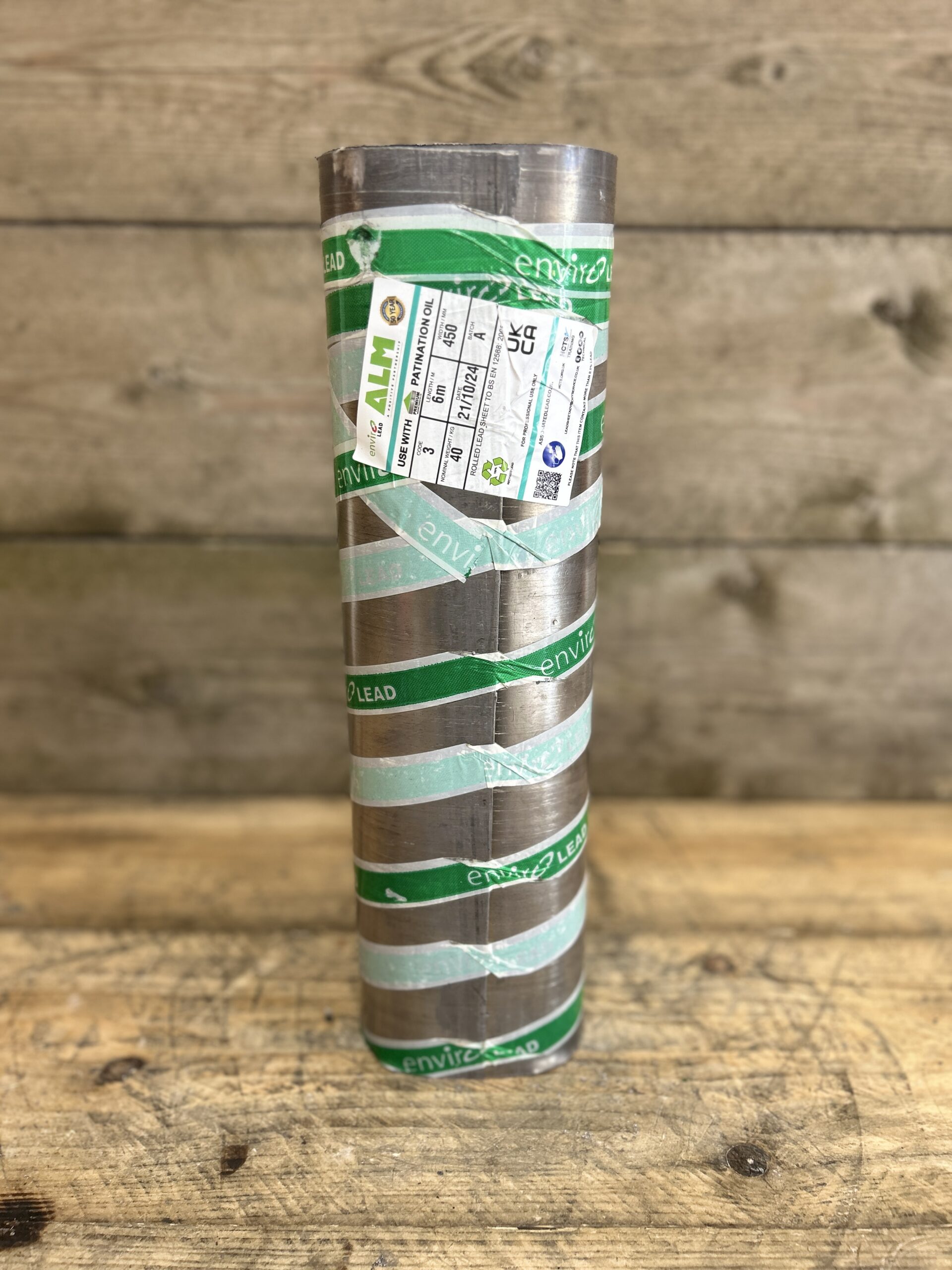

The code 3 450mm 6m roofing lead roll is a go-to choice for roofers who need a medium-wide, easy-to-handle lead sheet for flashings, dormers and abutments. At 450mm wide and 6m long, this format offers excellent coverage for chimney aprons, back gutters and general weathering details, while the Code 3 gauge keeps the sheet light enough for fast, accurate dressing on site.

Manufactured to BS EN 12588, this lead roll delivers consistent thickness, predictable behaviour and reliable long-term performance. It is widely used on domestic roofs, small commercial projects and heritage reinstatement where flexibility and speed of installation are key advantages.

The 6m length dramatically reduces the number of joints compared with shorter rolls. Fewer laps mean improved waterproofing, a cleaner appearance and less time spent cutting and aligning individual lengths.

To work out how many rolls you’ll need for your project, use our
Lead Flashing Calculator.

Typical uses for code 3 450mm 6m roofing lead

Thanks to its medium width and excellent workability, this product is ideal for:

• Chimney apron flashings and long back gutters.
• Medium-to-wide soakers for slate and tile roofs.
• Dormer cheek cladding and head flashings.
• Lean-to, porch and garage abutment flashings.
• Heritage and conservation repairs where a lighter gauge is specified.
• General roofing maintenance and reinstatement detail work.

Benefits of a 6m roll for medium-width flashings

Choosing a 6m roll offers major installation and performance benefits. Longer roll lengths reduce waste and lap joints, and allow you to run continuous flashings around chimneys and dormers with fewer interruptions.

• Fewer joints mean fewer potential leak points over the life of the roof.
• Less cutting and trimming speeds up installation on site.
• Cleaner, more consistent visual lines on visible details.
• Better material efficiency compared with using multiple short pieces.
• Ideal for extended abutments, chimney skirts and dormer details.

Installation guidance for this 450mm 6m lead roll

Even though this medium-wide Code 3 roll is lightweight and easy to dress, it must still be installed to recognised standards. Always follow BS EN 12588 and LSTA/LSA guidance for lap sizes, fixings and allowance for thermal movement.

Avoid stretching the sheet when forming it into chases or over deep profiles. New leadwork should be treated with patination oil to minimise early staining and keep the appearance uniform, especially on prominent chimneys and dormers.

For chase sealing, choose traditional mortar or
Lead Mate Sealant for a clean, durable finish.

Installation essentials

1. Prepare the substrate: Surfaces must be smooth, fully supported and free of sharp edges.
2. Dress carefully: Form the sheet without overstretching or thinning the lead.
3. Use correct fixings: Select copper or stainless nails from our
   Leadwork Fixings range.
4. Seal chases properly: Finish with mortar or Lead Mate Sealant as appropriate.
5. Protect the surface: Apply patination oil immediately after installation.

Further guidance & professional resources

For more in-depth advice on using rolled lead products, explore
The Lead Handbook,
the main site at
The Lead Lads,
and expert roofing guidance via
Neal Roofing — Leadwork Services.

Recommended accessories

Complete your installation with:
Hall Clips,
Lead Underlay,
Lead Patination Oil,
Lead Mate Sealant,
and our wider
Leadwork Accessories.

At a glance — code 3 450mm 6m roofing lead

All figures are approximate. Always install in line with BS EN 12588 and current LSTA/LSA guidance for rolled lead.
