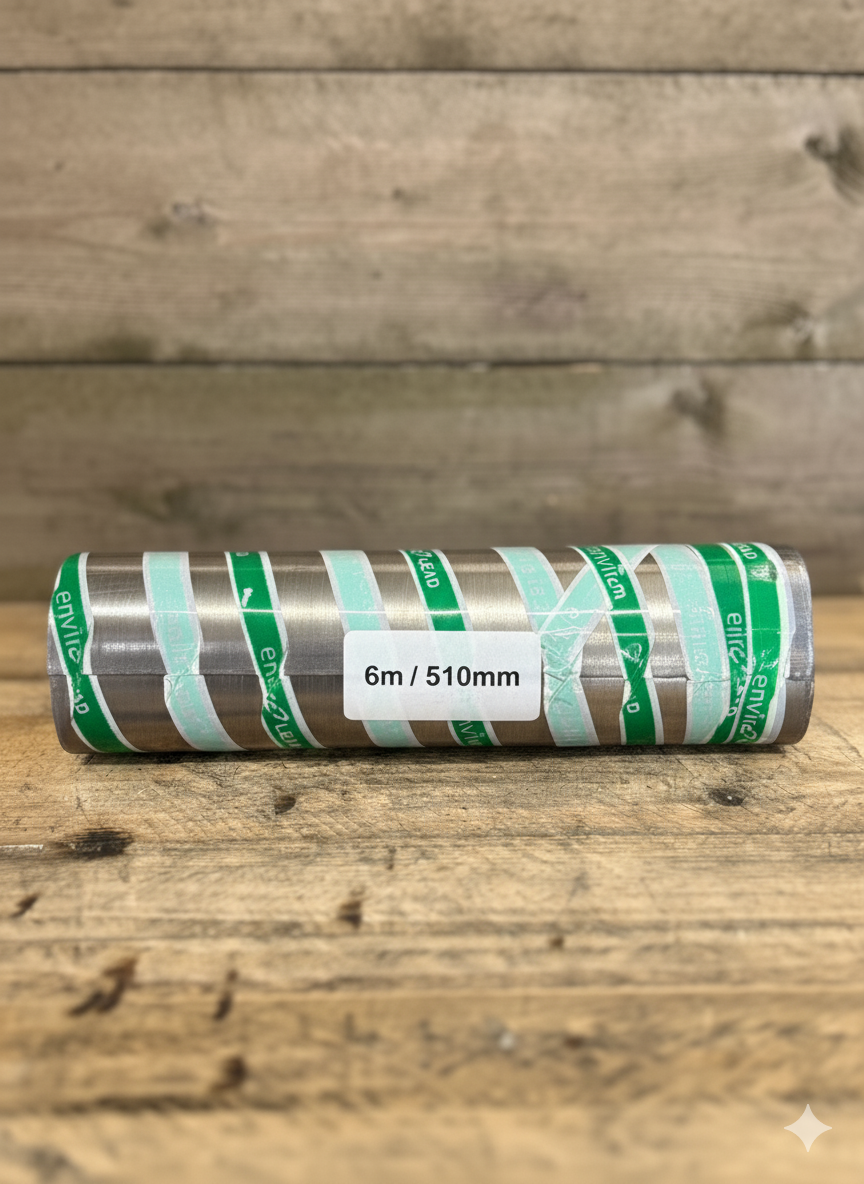

Why choose Code 3 510mm 6m Roofing Lead?

The code 3 510mm x 6m roofing lead roll is a perfectly balanced width for flashings, soakers, dormers and general weathering applications where workability and reliable long-term performance are essential. At 510mm wide, this size provides more coverage than 450mm rolls while remaining lightweight and easy to dress, making it ideal for roofers who need flexibility without the heavier feel of Code 4.

Manufactured to BS EN 12588, the code 3 510mm x 6m roofing lead offers consistent thickness, predictable movement behaviour and dependable durability. It is particularly suited to domestic roofing, heritage detailing, agricultural buildings and light commercial weathering, where ease of handling is a major benefit.

The extended 6m length minimises cutting, reduces waste and dramatically lowers the number of joints—strengthening overall waterproofing performance. Installers can achieve a more professional finish with uninterrupted runs of lead across abutments, chimney back gutters and long dormer flashings.

For accurate planning, use our
Lead Flashing Calculator.

Typical uses for Code 3 510mm 6m Roofing Lead

This versatile roll size is widely used for intermediate-width details that require more coverage than narrow strips but don’t justify the weight or rigidity of heavier codes.

• Stepped and cover flashings on chimneys.
• Medium-width soakers for slate and tile roofs.
• Back gutters and apron flashings on chimneys.
• Dormer cheek coverings and front flashings.
• General abutment flashings where extra height is needed.
• Flat-to-pitched junctions on extensions and lean-tos.

Why a 6m roll improves performance

The 6m length of code 3 510mm x 6m roofing lead is a key advantage for installers. It enables longer, cleaner runs of flashing, reduces the number of joints and ensures a more watertight finish—especially important around chimneys and long abutments.

• Minimal joints = better waterproofing.
• Faster installation due to fewer cuts.
• More consistent appearance on visible details.
• Reduced waste and improved material efficiency.
• Smoother transitions around dormers and roof junctions.

Installation guidance & best practice

As with all rolled lead, code 3 510mm x 6m roofing lead must be installed according to LSTA/LSA recommendations for movement joints, correct laps and appropriate fixing methods. Although lightweight, it must still be dressed carefully to avoid stretching.

After fixing, all exposed areas should be treated with patination oil to prevent carbonate staining. Chases should be sealed with traditional mortar or
Lead Mate Sealant for a durable, neat finish.

Installation essentials

1. Prepare the substrate: Ensure the surface is smooth and fully supported.
2. Dress without stretching: Maintain the integrity of the sheet when forming.
3. Use correct fixings: Choose copper or stainless nails from the
   Fixings Range.
4. Seal chases properly: With mortar or Lead Mate Sealant.
5. Apply patination oil: Protect the new installation immediately.

Further guidance & resources

Improve your understanding of leadwork through:
The Lead Handbook,
The Lead Lads,
and professional resources at
Neal Roofing.

Recommended accessories

Pair code 3 510mm x 6m roofing lead with:
Hall Clips,
Lead Underlay,
Patination Oil,
and more from the
Accessories Collection.

At a glance — Code 3 510mm 6m Roofing Lead

All figures approximate. Always follow BS EN 12588 and LSTA/LSA guidance.
