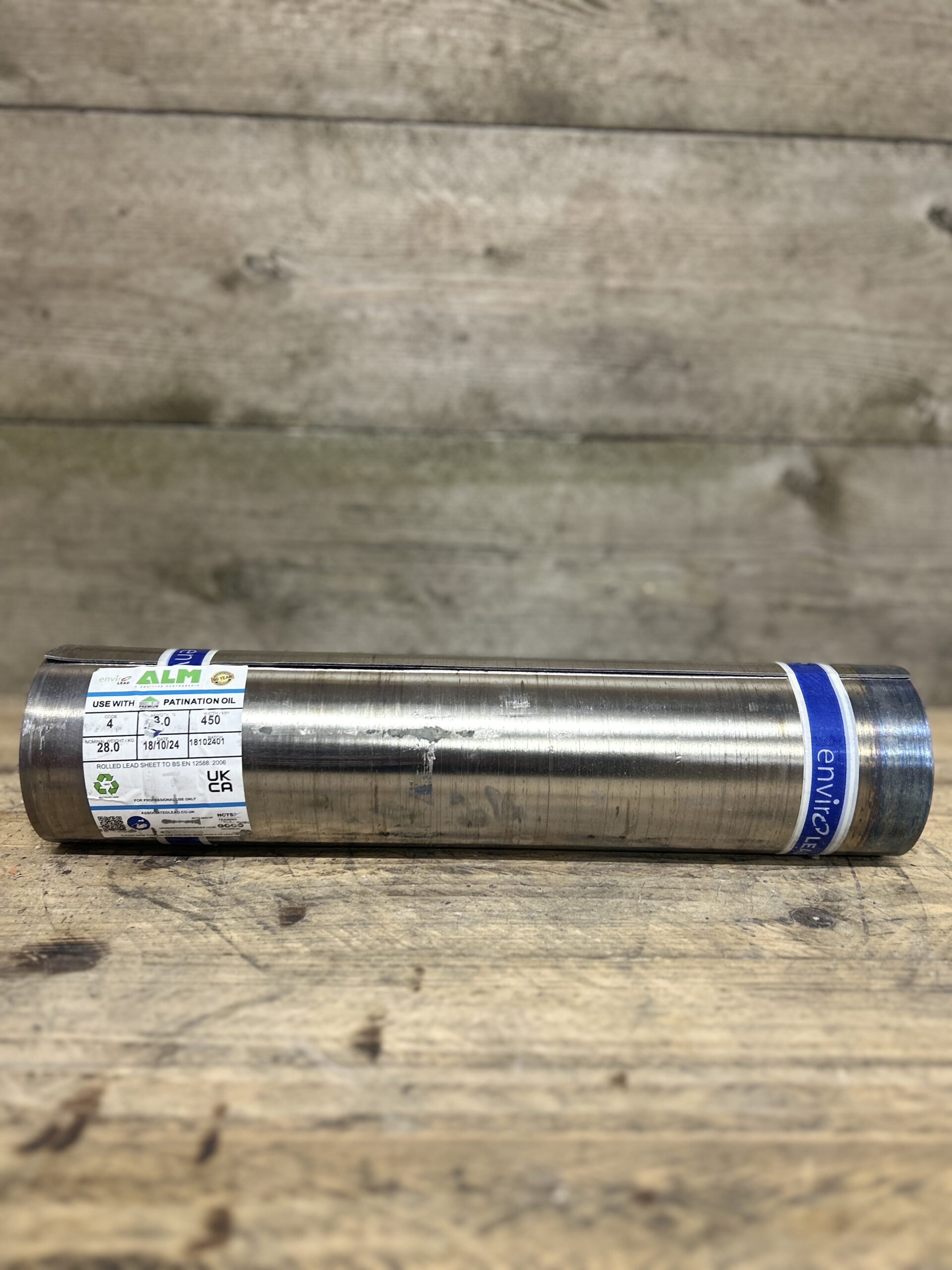

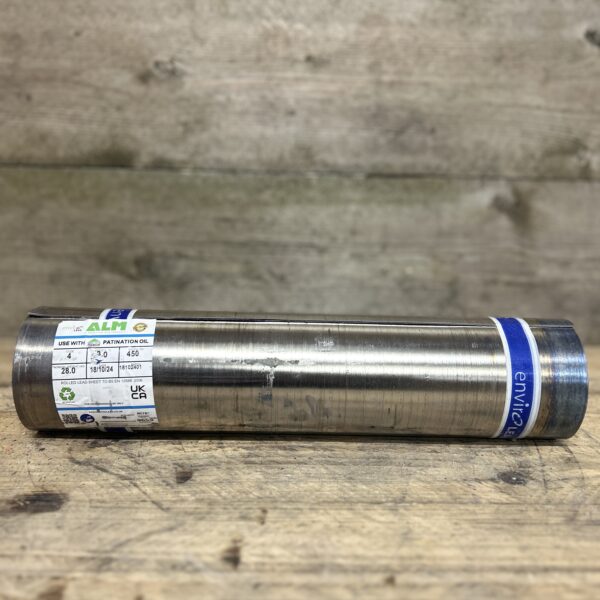

Code 4 450mm x 3m Roofing Lead Roll

Today's kg price is: £2.81

Code 4 450mm x 3m roofing lead for professional roofing and leadwork applications.
Ideal for wider flashings, chimney details, back gutters and roof weatherings.
Approx. 1.80mm thick with an indicative roll weight of 27.5kg.
Manufactured to BS EN 12588 for consistent rolled lead sheet specification.
Durable and workable lead sheet for traditional, heritage and modern roofing details.

£78.75 (price per roll / £2.81 per kg)

11 People watching this product now!

Fast Shipping

Same day packing

Specialist Products

All for Lead Work

24/7 Support

Unlimited help desk

Secure Payments

Credit/Debit Card

Description

THE LEAD LADS® / ROLLED LEAD SHEET

Code 4 450mm × 3m Rolled Lead Sheet

Code 4 450mm x 3m roofing lead
manufactured to BS EN 12588.
A wide-format lead roll for chimney work, abutments, back gutters,
flashings and substantial roof weathering details.

Lead Code

Code 4

Roll Size

450mm × 3m

Thickness

Approx. 1.80mm

Roll Weight

Approx. 28kg

Standard

BS EN 12588

Code 4 450mm lead roll

This 450mm wide Code 4 lead roll provides approximately
1.35m² of rolled lead sheet in a 3 metre length.
Its wider format is useful for substantial weathering details where
narrower flashing rolls do not provide sufficient sheet width.

At approximately 1.80mm thick, Code 4 lead is readily
workable for dressing and forming while providing a robust roofing
material when correctly detailed, supported and fixed.

Typical applications

The 450mm width is particularly useful for larger roofing details where
additional sheet width is required.

01 Chimney and abutment weatherings	02 Chimney back gutters and aprons
03 Parapet and masonry weatherings	04 Dormer and roof junction details
05 Wider cover flashings	06 Purpose-formed leadwork details

LEADWORK NOTE

Lead sheet expands and contracts with changes in temperature. Bay sizes,
laps, joints and fixing positions should therefore allow the lead to move
naturally. The full 3 metre roll length should not automatically be used
as a single fixed bay.

Installation essentials

01

Support

Provide a smooth, continuous supporting surface suitable for the detail.

02

Underlay

Select the appropriate underlay for the substrate and construction.

03

Movement

Detail bays, laps, joints and fixings to accommodate thermal movement.

04

Finish

Use compatible fixings and protect newly installed lead where appropriate.

TECHNICAL GUIDANCE

BS EN 12588 rolled lead sheet

This Code 4 lead roll is manufactured to BS EN 12588.
For further guidance on lead codes, sheet sizes, detailing and installation,
use The Lead Lads technical resources below.
