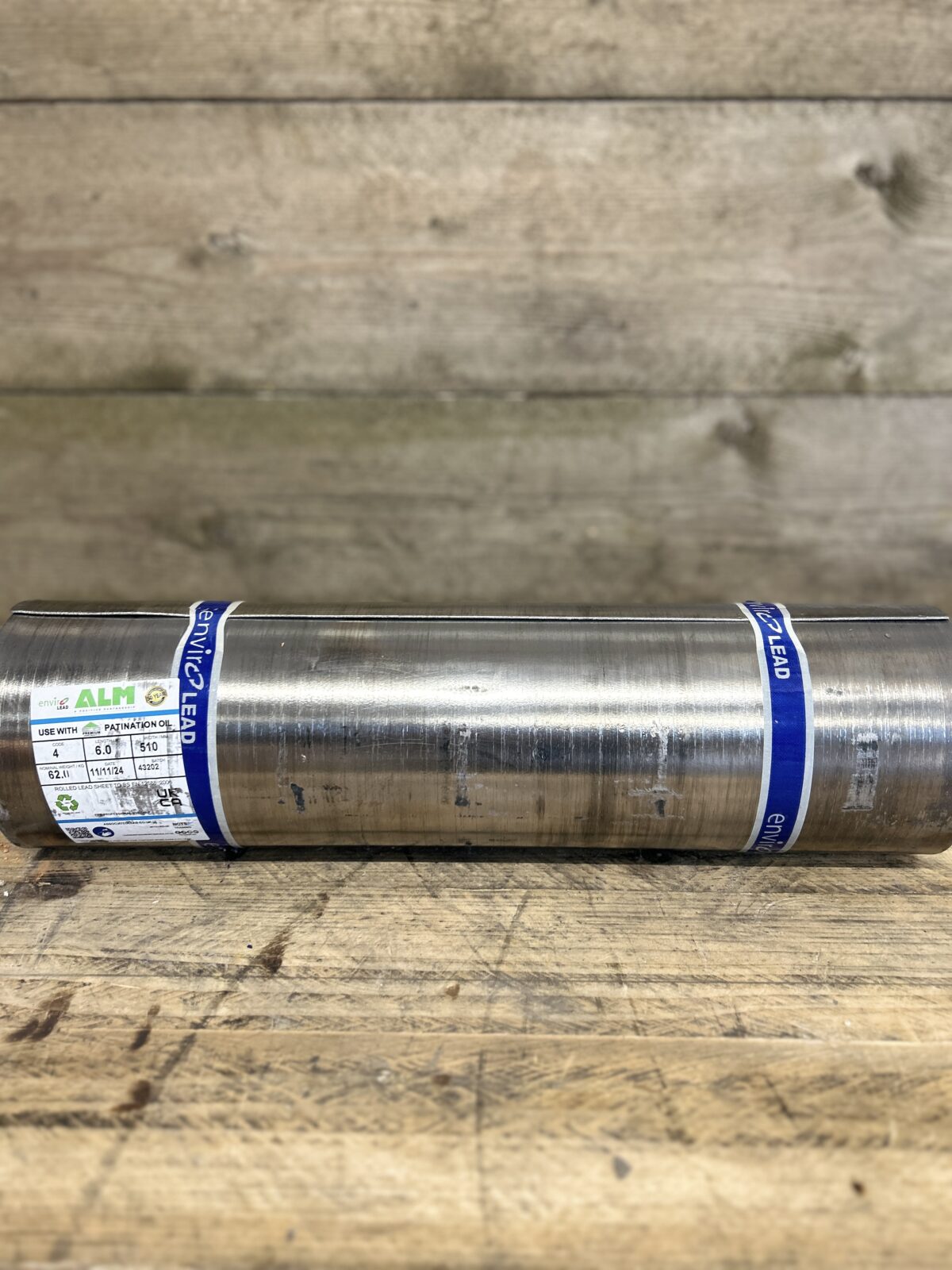

Why choose the Premium Code 4 510mm 6m Roofing Lead?

The code 4 510mm x 6m roofing lead is an exceptionally wide and versatile long-length roll designed for large-scale weathering details where maximum coverage and reduced jointing are essential. At 510mm wide, this premium roll offers outstanding performance on parapet walls, chimney back gutters, wide abutments, dormer structures, box gutters, and deep junctions requiring robust, continuous protection.

Manufactured to BS EN 12588, the code 4 510mm x 6m roofing lead provides excellent gauge consistency, superior malleability and long-term durability. Code 4 is widely specified because it offers an ideal balance of strength and flexibility, making it suitable for both traditional and modern roofing environments—even at this larger width.

The 510mm width sits between 450mm and 600mm, offering a “perfect middle ground” for installers wanting more coverage than mid-width rolls but without the weight increase associated with 600mm formats. This makes it particularly efficient for deep flashings and large chimney weatherings.

For quick ordering and surface area checks, use our:
Lead Flashing Calculator.

Typical uses for Code 4 510mm 6m Roofing Lead

• Extra-wide parapet flashings and coping protection.
• Chimney back gutters, side flashings and deep abutments.
• Dormer cheeks, cladding panels and extensive vertical flashings.
• Large-format soakers for wide slates and tiles.
• Box gutter linings on traditional and modern roofs.
• Long flashing runs requiring outstanding coverage.
• Heritage, conservation and listed property reinstatement.

The advantages of choosing a 6m long roll

The 6m length of code 4 510mm x 6m roofing lead eliminates the majority of jointing typically required with shorter rolls. This drastically improves installation speed and enhances long-term waterproof integrity.

Key benefits include:

• Fewer joints and improved water resistance.
• Cleaner, continuous aesthetic on visible details.
• Faster installation—ideal for busy roofing teams.
• Enhanced reliability on wide parapets and chimney structures.
• Reduced long-term maintenance due to fewer potential failure points.

The width–length combination makes this roll a top-tier choice for large professional roofing projects.

Good practice when installing 510mm wide lead

As one of the wider sheets in the Code 4 category, code 4 510mm x 6m roofing lead requires solid support and correct detailing to accommodate thermal movement. Ensure that substrates are smooth, well-prepared and free from sharp objects.

Avoid overstretching the lead during dressing. Always apply patination oil immediately after installation to reduce carbonate staining and ensure even early weathering.

Seal chases with either mortar or a specialist product such as
Lead Mate Sealant.

Installation essentials

1. Prepare the substrate: Wide-format lead must be laid on a smooth, fully supported surface.
2. Cut & shape: Dress the code 4 510mm x 6m roofing lead neatly to the profile.
3. Fix correctly: Secure using copper or stainless nails from our
   Leadwork Fixings.
4. Seal the chase: Use Lead Mate Sealant or mortar depending on the specification.
5. Apply patination oil: Protect the entire surface immediately after fixing.

Further reading & guidance

To refine your leadworking knowledge, explore:
The Lead Handbook,
theleadlads.co.uk,
and the technical guides at
Neal Roofing.

Complete the system

Combine code 4 510mm x 6m roofing lead with:
Hall Clips,
Lead Underlay,
Lead Mate Sealant,
Patination Oil,
and browse the complete
Accessories Range.

At a glance — Code 4 510mm 6m Roofing Lead

All values are approximate. Always follow BS EN 12588 and LSTA detailing guidance.
