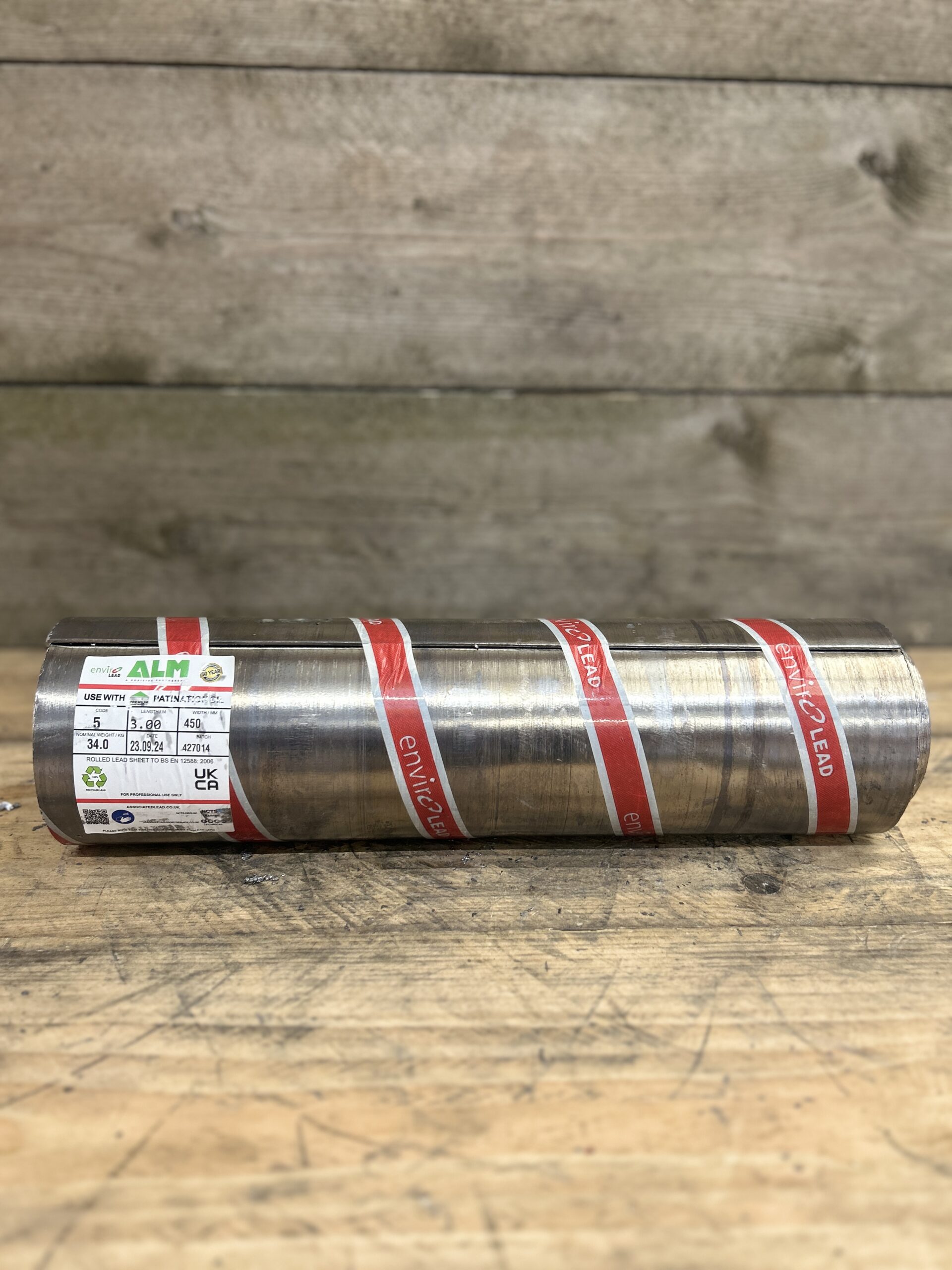

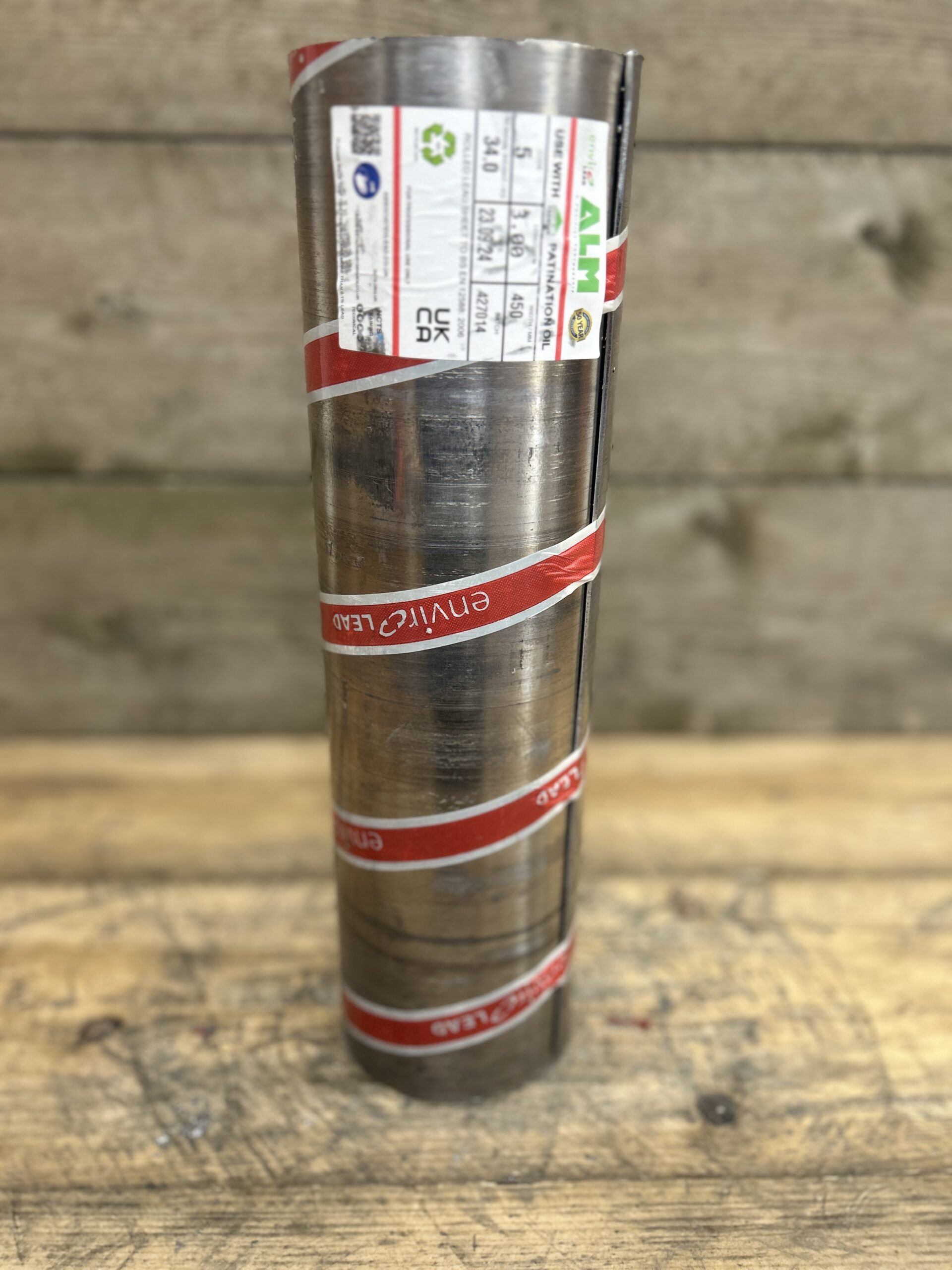

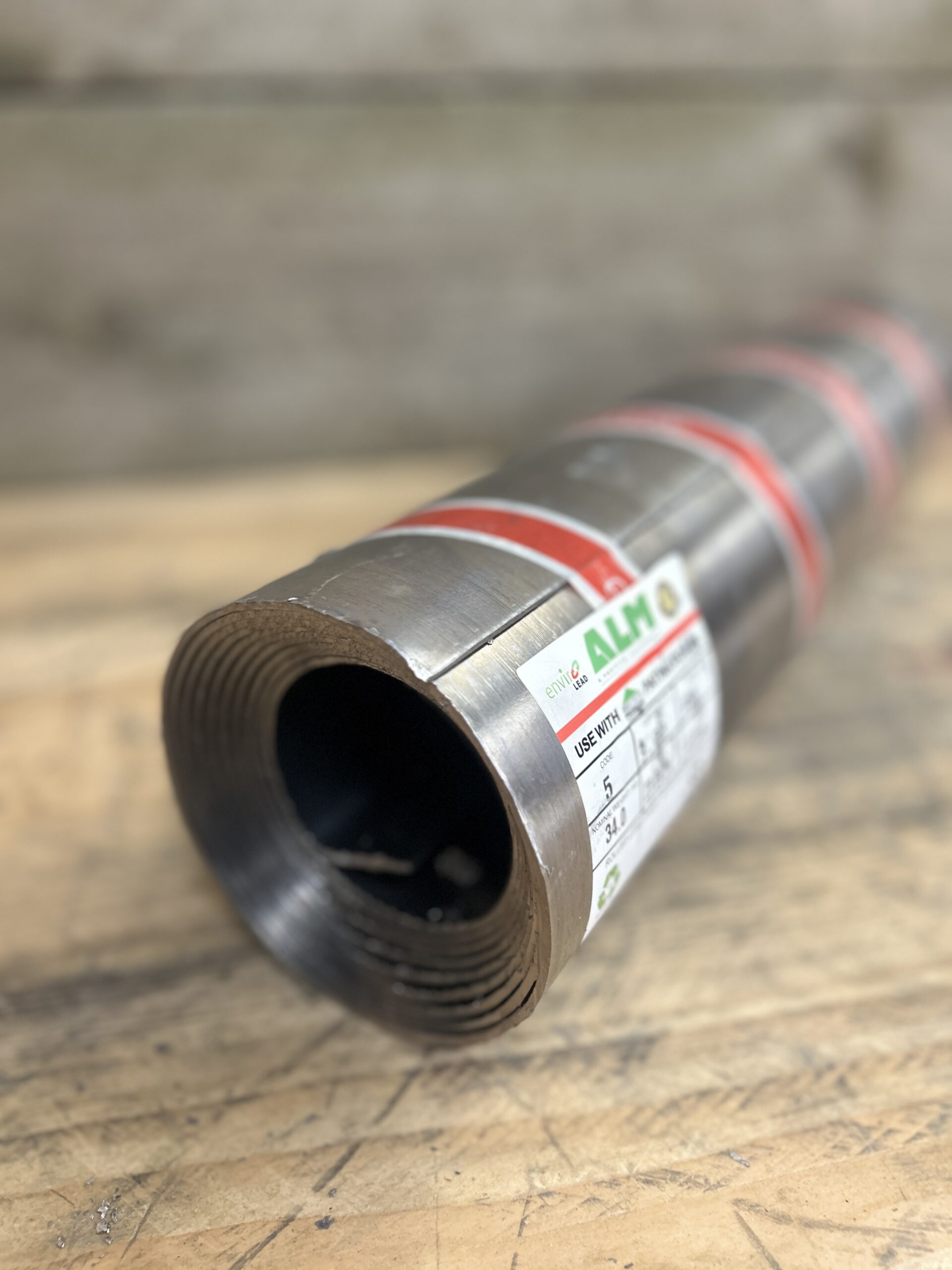

Why choose Code 5 450mm 3m Roofing Lead?

Code 5 450mm 3m Roofing Lead delivers a tougher, heavier-gauge solution for demanding details:
deeper flashings, chimney aprons and back gutters, parapet weatherings and compact bay panels designed with correct
movement and drainage. At approximately 2.24 mm thick and around 25.4 kg/m²,
Code 5 offers noticeably greater stiffness and longevity than Code 3/4 while still dressing cleanly with
the right tools and technique. If you want principle-led refreshers on bay sizing, movement control and sequencing,
explore the practical guides at
The Lead Lads.

Best-fit uses

• Heavy-duty stepped/cover flashings to brick/stone abutments in higher exposure zones.
• Chimney aprons, back gutters and saddles where extra stiffness is beneficial.
• Parapet/coping weatherings and compact bay panels (with sensible bay sizes and movement detailing).
• Dormer cheeks/heads and window/door head weatherings where durability and presentation matter.
• Refurbishment projects upgrading from lighter codes for increased service life.

Planning & set-out

The 450 mm width of Code 5 450mm 3m Roofing Lead gives generous cover at tricky junctions without the
handling bulk of very wide strips. Confirm exposure, chase depth and laps, then limit single-piece lengths to manage
thermal movement; align joints with steps, drips and outlets. Where long straight runs are required, balance fewer joints
against movement control and substrate geometry. For case-led context showing how finished details should present, see
Neal Roofing — Leadwork.

Good practice for Code 5

Use mechanical fixings sparingly and outside movement zones; never over-nail or bridge joints. Provide a smooth
slip layer under bay panels and wider weatherings to
facilitate free expansion/contraction and reduce underside abrasion. Maintain clear drainage paths and incorporate drips/rolls
or expansion features appropriate to the bay size. Finish visible elevations with
Patination Oil to reduce early staining while the patina establishes.
For standards-aligned principles and checklists, review our explainer:
BS 6915 — Proper Leadwork.

Installation essentials

1. Prepare the substrate: Smooth, continuous bearing; remove sharp edges. Add a slip layer beneath bays and wider pieces.
2. Set out & cut: Measure accurately; cut Code 5 450mm 3m Roofing Lead with clean edges for consistent laps and crisp arrises.
3. Restraint & fixings: Use copper or stainless fixings/clips; position outside movement zones and avoid over-nailing.
4. Finish chases: Point with mortar or apply Lead Mate Sealant (neutral-cure) for a durable, water-shedding joint.
5. Presentation: Apply patination oil to visible work and protect surfaces during other trades.

Choosing the right code

Select Code 5 when the lead sheet acts as a covering (e.g., compact bays/parapets) or when exposure and detail
depth exceed the comfort zone of lighter grades. For lighter-duty flashings and individual soakers, Code 3 may suffice; for
robust flashings and small weatherings, Code 4 is the common sweet spot. Matching code to function, combined with thoughtful
bay sizing and movement detailing, is key to long life. For applied know-how and photos of completed details, visit
Neal Roofing — Leadwork.

Complete the system

Pair Code 5 450mm 3m Roofing Lead with:
Hall Clips for rapid chase restraint,
Copper ARS Nails 3.35×25 mm or
Stainless Ringshank 25 mm for mechanical fixings,
Building Paper Lead Underlay as a slip layer, and
Patination Oil 0.5L to protect fresh work. Adjacent sizes:
Code 5 390mm ·
Code 5 510mm.

Further reading

For deep dives into bay sizing, drips/rolls and movement control on parapets and compact bays, explore
theleadlads.co.uk and our standards overview:
BS 6915 — Proper Leadwork.
These resources complement your project specification and help ensure Code 5 450mm 3m Roofing Lead performs exactly as intended.

At a glance — Code 5 450mm 3m Roofing Lead

Figures are indicative; always follow your project specification. Incorporate drips/rolls, expansion features and slip layers appropriate to bay size and exposure.
