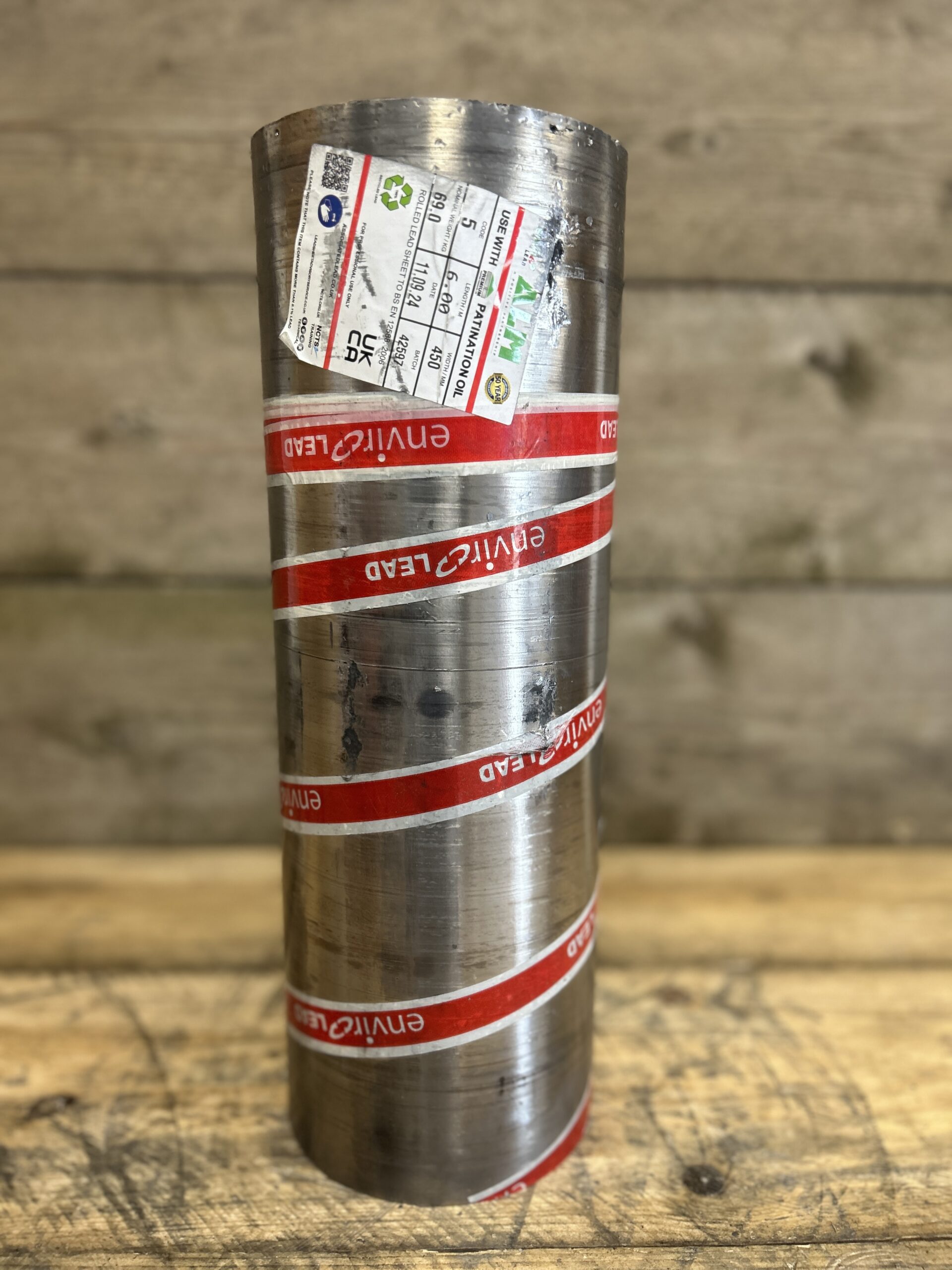

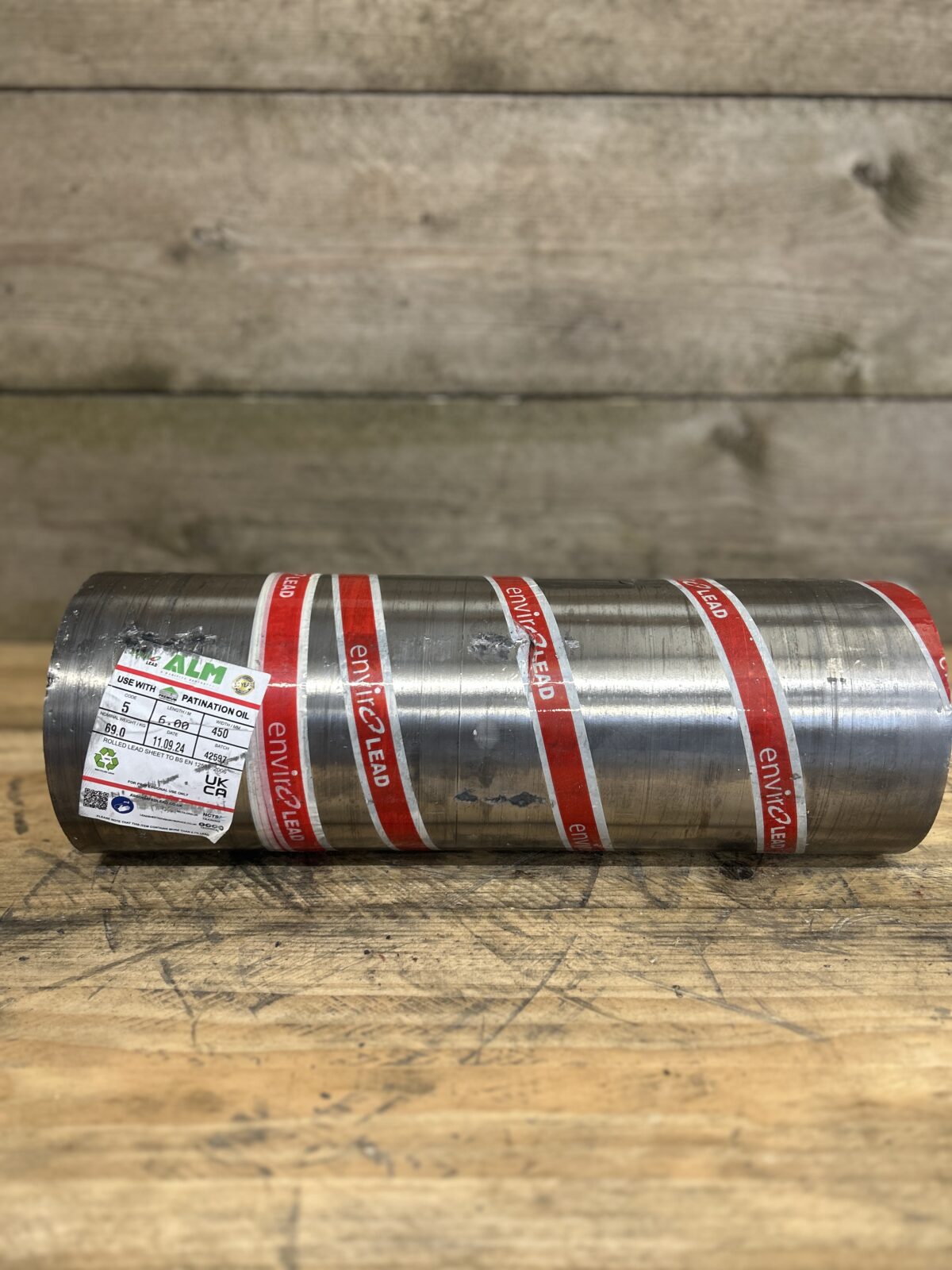

Why choose code 5 450mm 6m roofing lead?

The code 5 450mm 6m roofing lead roll is a go-to specification for roofers who need a robust, heavy-gauge sheet for valley linings, wide flashings and parapet weatherings. At 450mm wide, it offers excellent coverage for pitched roof valleys and structural weatherings while maintaining manageable handling and forming characteristics on site.

Manufactured to the BS EN 12588 material standard, code 5 450mm 6m roofing lead provides consistent thickness (approx. 2.24mm), controlled tolerances and predictable behaviour when dressed and detailed. BS EN 12588 governs the sheet’s material properties; workmanship and detailing should follow recognised guidance from the Lead Sheet Training Academy (LSTA) and BS 6915.

In practice, 450mm Code 5 is widely adopted as the standard choice for traditional valley linings on slate and tile roofs. When installed in correctly sized bay lengths with properly lapped joints, it delivers a long-service-life solution for both modern and heritage roofing projects.

For coverage planning, roll weights and bay sizing, use our
Lead Flashing & Lead Roll Calculator.

Typical uses for code 5 450mm 6m roofing lead

Thanks to its width and heavy gauge, code 5 450mm 6m roofing lead is ideal for:

• Pitched roof valley linings on slate and tile roofs.
• Bay roof coverings and transitions between roof planes.
• Parapet cappings and boundary wall weatherings.
• Wide chimney aprons and back gutters.
• Weatherings to stone cornices, string courses and ledges.
• Heritage and conservation projects where Code 5 is specified as the minimum gauge.

Why 450mm Code 5 is the go-to for valley linings

For many roofers and specifiers, code 5 450mm 6m roofing lead is the default choice for pitched roof valleys. The 450mm width provides sufficient side upstands and central trough while balancing weight and ease of dressing. When detailed correctly, it offers a highly reliable and maintainable valley solution.

• Provides generous coverage for typical valley geometries.
• Code 5 gauge offers excellent resistance to fatigue and uplift.
• Suitable for both new-build and refurbishment projects.
• Compatible with slate, plain tiles and many interlocking tile systems.

In line with LSTA guidance and BS 6915, valley linings in Code 5 should not be installed in one continuous piece. Instead, the 6m roll is cut into bays of around 1500mm length, laid from the eaves upwards with appropriate lap joints, sized to suit the pitch and exposure conditions.

Installation guidance

Install code 5 450mm 6m roofing lead in accordance with the workmanship principles set out by the Lead Sheet Training Academy / Lead Sheet Association and the detailing rules in BS 6915. These sources set out bay sizes, joint types, lap lengths and fixing patterns for Code 5 in valleys, parapets and other structural weatherings.

BS EN 12588 confirms the material standard of the rolled lead; it does not define installation practice. For an accessible summary of BS 6915, see
The Lead Lads — BS 6915 Leadwork Guidance
and
Neal Roofing — BS 6915 Leadwork.

For valley applications, the 6m roll should typically be cut into sections of approximately 1500mm and installed with laps in accordance with BS 6915 and LSTA recommendations, taking roof pitch and exposure into account.

After installation, apply patination oil to exposed surfaces of the code 5 450mm 6m roofing lead to limit carbonate staining and promote even weathering.

For sealing chases and terminations into masonry at abutments or parapets, use mortar or
Lead Mate Sealant
as appropriate.

Installation essentials

1. Prepare the substrate: Ensure valley boards, decks or parapets are smooth, fully supported and protected with suitable
   Lead Underlay.
2. Cut bays correctly: For valleys, cut the code 5 450mm 6m roofing lead into sections of around 1500mm and provide laps to BS 6915 / LSTA guidance.
3. Fix with care: Use copper or stainless fasteners from our
   Leadwork Fixings range, positioned to allow for thermal movement.
4. Form joints and details: Dress drips, welts and side upstands in line with LSTA / BS 6915 details for valleys and parapets.
5. Finish & protect: Seal chases where required, then apply patination oil to all exposed lead surfaces.

Further resources & technical support

For a deeper look at the material standard, see
BS EN 12588 — The Ultimate Guide.
For broader technical content and detailing examples, explore
The Lead Handbook
and our main hub at
The Lead Lads.
For specialist installation and case studies, see
Neal Roofing — Leadwork Services.

Recommended accessories

Maximise performance by pairing code 5 450mm 6m roofing lead with:
Lead Underlay,
Patination Oil,
Lead Mate Sealant,
and robust fixings from our
Leadwork Fixings range.

At a glance — code 5 450mm 6m roofing lead

Figures are approximate. Use BS EN 12588 for material specification and follow LSTA/LSA and BS 6915 guidance for workmanship, bay sizing and laps.
