Why choose code 5 600mm 6m roofing lead?

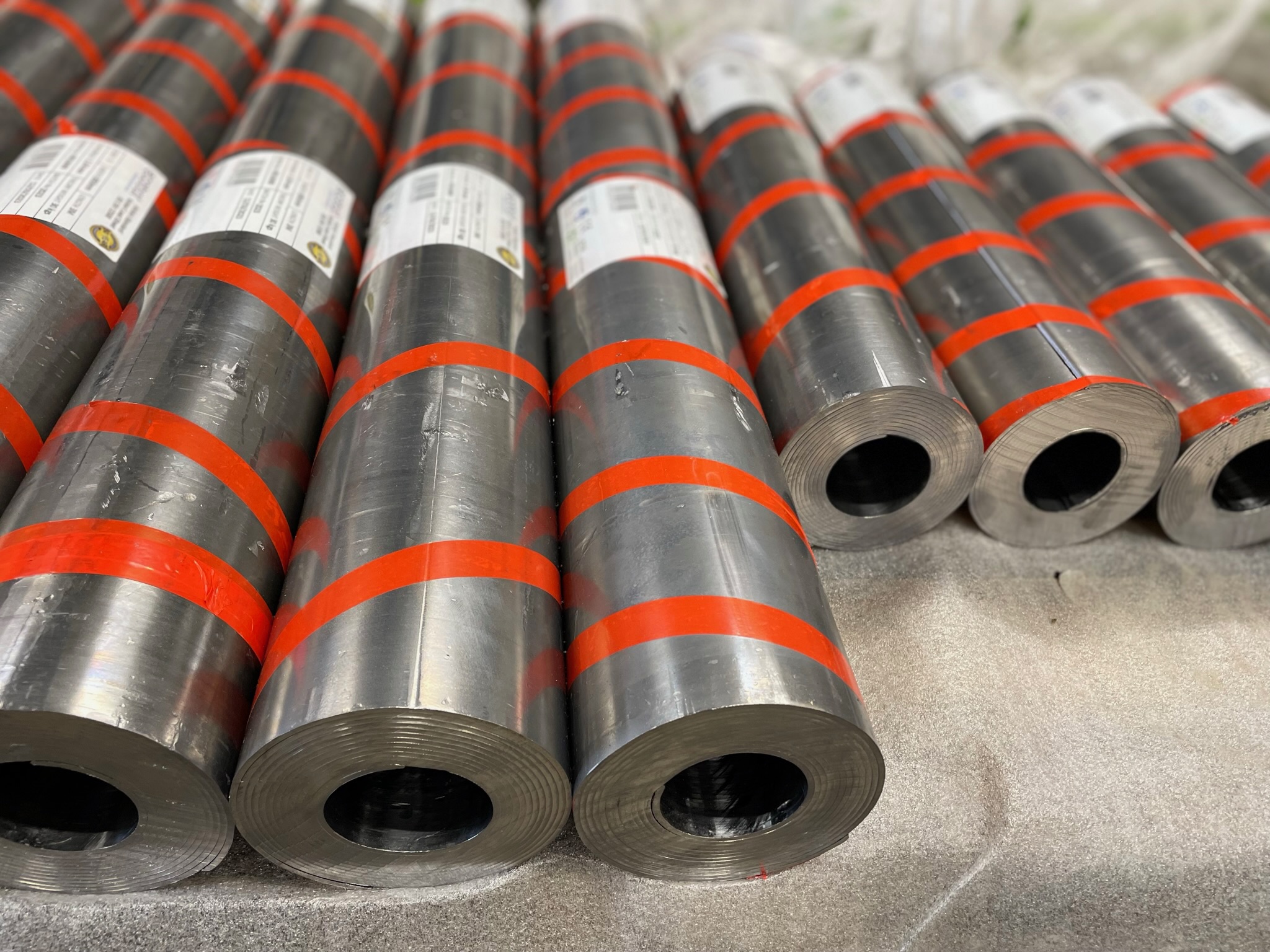

The code 5 600mm 6m roofing lead roll is a core product used by experienced leadworkers, roofers and conservation specialists. Its generous 600mm width and heavy-gauge durability make it an essential choice for vertical cladding in welted panels, wide valley linings, parapet cappings and detailed interface weatherings. For structural and architectural applications that demand reliability and long-term performance, this is one of the most versatile Code 5 formats available.

Rolled to the BS EN 12588 material standard, code 5 600mm 6m roofing lead offers consistent thickness (approx. 2.24mm), controlled tolerances and predictable workability. While BS EN 12588 governs the quality of the metal itself, correct installation must follow the workmanship principles established by the Lead Sheet Training Academy (LSTA) and the detailing rules in BS 6915.

This 600mm wide format provides the ideal balance of coverage and manageability, making it a mainstay for both modern and heritage projects. Whether forming welted cladding panels, lining wide valleys, creating parapet trays or weathering complex junctions, this roll is relied upon daily across the UK roofing sector.

For bay sizing, roll weights and material planning, use our
Lead Roll & Flashing Calculator.

Typical uses for code 5 600mm 6m roofing lead

This wide heavy-gauge roll is ideal for demanding and high-spec applications such as:

• Vertical cladding in welted panels on dormers, façades and gable details.
• Wide valley linings for slate or tile roofs exposed to heavy rainfall.
• Parapet cappings and boundary wall weatherings with deep upstands.
• Interface weatherings between roof planes, walls, chimneys and projections.
• Bay roofs, sumps, gutter linings and structural coverings.
• Heritage and conservation roofing where Code 5 is a minimum specification.

Why Code 5 is ideal for wide and structural weatherings

Wider sheets perform better when manufactured in a heavier gauge, due to increased thermal movement and greater exposure to uplift forces. Code 5 600mm 6m roofing lead provides:

• Greater fatigue resistance for long-term service life.
• Enhanced rigidity ideal for deep welted cladding panels.
• Reliable stability across wide valley surfaces.
• Improved performance in high-wind and coastal environments.

When detailed and installed in accordance with the LSTA manual and BS 6915, Code 5 forms a durable, high-performance weathering system suitable for both residential and commercial projects.

Installation guidance

Install code 5 600mm 6m roofing lead following the Lead Sheet Training Academy workmanship standards and BS 6915 detailing rules. These documents define correct bay sizes, fixing patterns, drips, welts and lap requirements for Code 5 installations.

BS EN 12588 covers the rolled lead material specification, not the installation technique. For clear summaries, see:
The Lead Lads — BS 6915 Overview
and
Neal Roofing — BS 6915 Explanation.

The 6m roll should be cut into safe bay lengths appropriate to the detail and roof exposure. For cladding, panels are typically welted and clipped at defined centres; for valleys, joints and laps must be sized in accordance with BS 6915.

Once installed, apply patination oil to the exposed surfaces to prevent early carbonate staining and ensure even weathering.

Installation essentials

1. Prepare surfaces: Ensure fully supported decks, cladding substrates or valley boards are smooth and protected with
   Lead Underlay.
2. Size bays correctly: Follow LSTA and BS 6915 rules for Code 5 bay lengths and cladding panel proportions.
3. Fix securely: Use copper or stainless fixings from our
   Leadwork Fixings range.
4. Form joints properly: Welt, lap or drip the code 5 600mm 6m roofing lead using BS 6915 detailing principles.
5. Finish and protect: Seal chases where applicable and apply patination oil after fixing.

Further resources & technical support

For a full breakdown of the BS EN 12588 material standard, visit
BS EN 12588 — The Ultimate Guide.

Additional technical content, detailing support and guidance can be found in
The Lead Handbook
and across our leadwork knowledge hub
theleadlads.co.uk.

For installation examples and specialist workmanship, visit
Neal Roofing — Leadwork Services.

Recommended accessories

Maximise the performance of code 5 600mm 6m roofing lead by pairing it with:
Lead Underlay,
Patination Oil,
Lead Mate Sealant,
and premium fixings from our
Leadwork Fixings.

At a glance — code 5 600mm 6m roofing lead

Figures approximate. Use BS EN 12588 for material specification and follow LSTA / BS 6915 for workmanship, bay sizing and detailing.
